Quick Details

  • Type: Other
  • Condition: New
  • Application: Chemical, Commodity, Food, Medical
  • Packaging Type: Bags, Film, Pouch
  • Packaging Material: Plastic, Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 2200W
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Shigan
  • Model Number: SG-B420
  • Weight: 450kg
  • Dimension(L*W*H): 1550(L)*1150(w)*1750(h)mm
  • Certification: ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Packing speed: 5-70 Bags/min
  • Bag Size: W:60-200mm L:60-300mm
  • Max Film Width: 420mm
  • Film Thickness: 0.04-0.09mm
  • Interface: 7"HMI/10"HMI
  • Air Consumption: 0.5 m3/min,0.8Mpa
  • Name: single head linear weigher packing machine
  • Product name: packing machine
  • Function: Packing Filling
  • Color: Grey

Packaging & Delivery

Packaging Details Wooden case for single head linear weigher packing machine
Delivery Time Shipped in 20 days after payment
Product Description

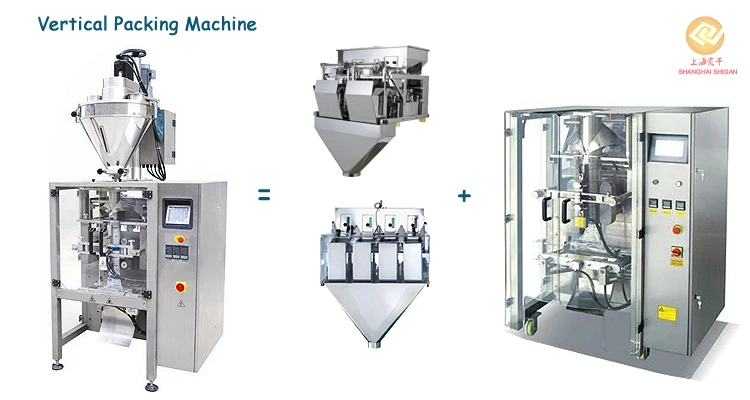

Factory price Vertical FFS dosing single head linear weigher packing machine

Vertical Packing Machine Technical Specification
Model
SG-B420
Packing Speed
5-70Bags/Min
Bag Size
Width:   60-200mm
Lengh:   60-300mm
Pouch Material
POPP/CPP,POPP/VMCPP,BOPP/PE,NY/PE,PET/PET

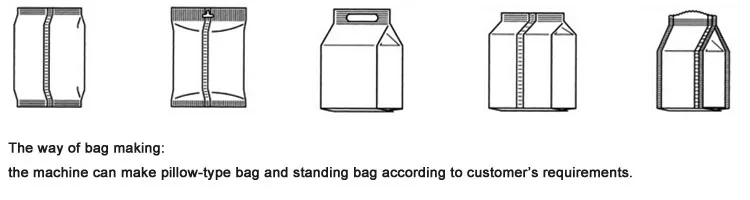

Type of Bag Making
Pillow bag,Gusset bag,Punching bag,Connecting bag
Film Thickness
0.04-0.09mm
Aie Consumption
0.5 m3/min 0.8Mpa
Max Film Width
420mm
Power Parameter
220 V    50/60 Hz   2200 W
Gross Weight
450kg

Package Size
Lengh
1550 mm
Width
1150 mm
Height
1750 mm
Interface
7'' HM
10'' HM

Advantage:
Compare with others, this machine is more focusing on the details, and these details determine the performance, with its advantage as following :

1.Adopting PLC and touch screen, easy to operate.
2.Dual-belt pulling with servo makes film transporting smoothly.
3.Perfect alarm system to make problem solved quickly.
4.Co-working with weighing and filling machine, Process of weighing , bagging, filling, date printing, charging(exhausting), counting and delivering finished product can be completed automatically.

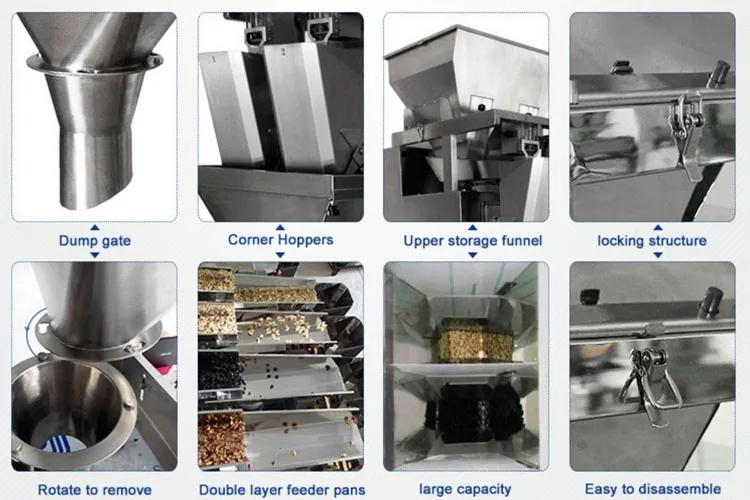

Vertical Packing Machine Detail:

Components : Material / Short List
Products Touching Parts
Stainless Steel SUS 304 with mirror deal process as the standard
Structure/Surface
Stainless Steel SUS 304
Programmable Logic Controller
Delta, Siemens, Mitsubishi, Panosonic
Touch Screen
Weinview, Siemens,Delta,Kinco, Panosonic
Key Protection & Relay
Schneider,Delixi

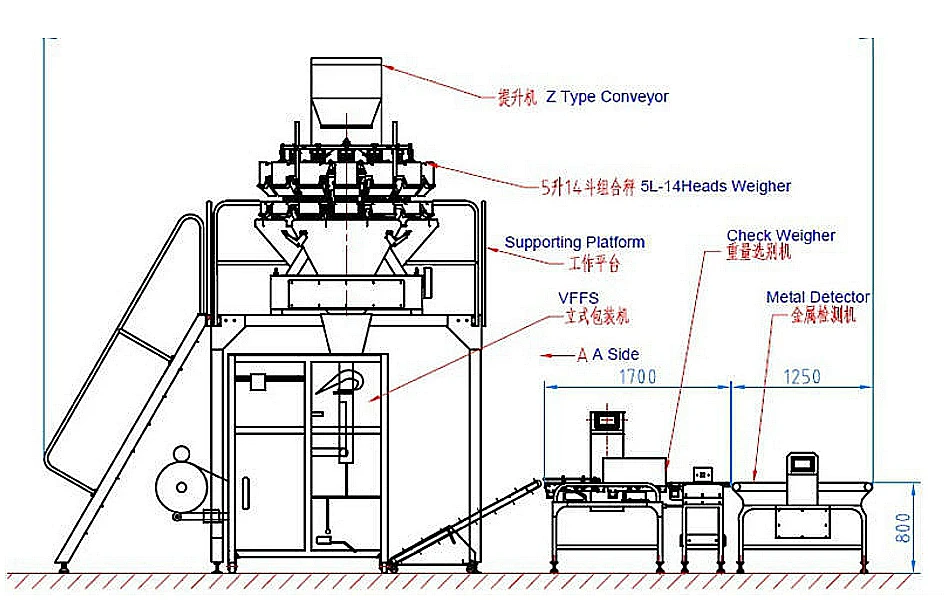

Factory price Vertical FFS dosing single head linear weigher packing machine drawing:

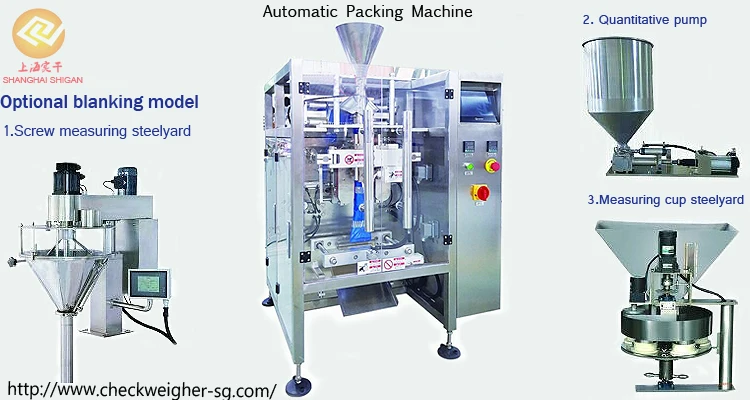

Main Optional Part of Vertical Packing Machine System

1.Multihead Weigher 10head /14head/20head
2.Vertical Packaging Machine
3.Z Type Bucket Conveyor
4.Working Platform304SS
5.Finished Product Conveyor

Product Application

It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

Main Products

We accept kinds of customized and logo of all of our products for customers .

If you interested ,only click “ send ”
If you want to know more related products,
please Click on the link ☟
More surprises waiting for you ~


1,Check Weigher                        2,Multihead Weigher (10-32 Heads)       3,Linear Weigher (1-4 Heads)  
4,Vertical Packing Machine      5, Rotary Packing Machine                      6, Metal Detector

Packing & Delivery

1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.

Packing Detail:
☂ Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam
   filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we
    pack the goods in containers and ship them abroad.

Delivery Detail :
☀ Shipped in 25 days after payment

Why choose us

Choose Shigan machine
Seven years of grinding sword,Focus on seven years of accumulation
Be a professional supplier of scales


1. 7 years manufacture experience,strong R&D department.
2. OEM,ODM and customized service.
3. Strict QC process to guarantee quality.
4.Trial Order small quantity for retail and wholesale are accepted
5 We promiss machine keep working over 10 years in good working condition.
6.Fewer easy broken parts,easy to change.
7.Intelligent PLC control system,easy operate,more hommization.
8. One year guarantee time,lifelong free service,24 hours online service.

Our Service

To find best solution, to save cost, to give best service, and to earn more profit for our partners, and looking forward to long-term cooperation always!

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.


After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

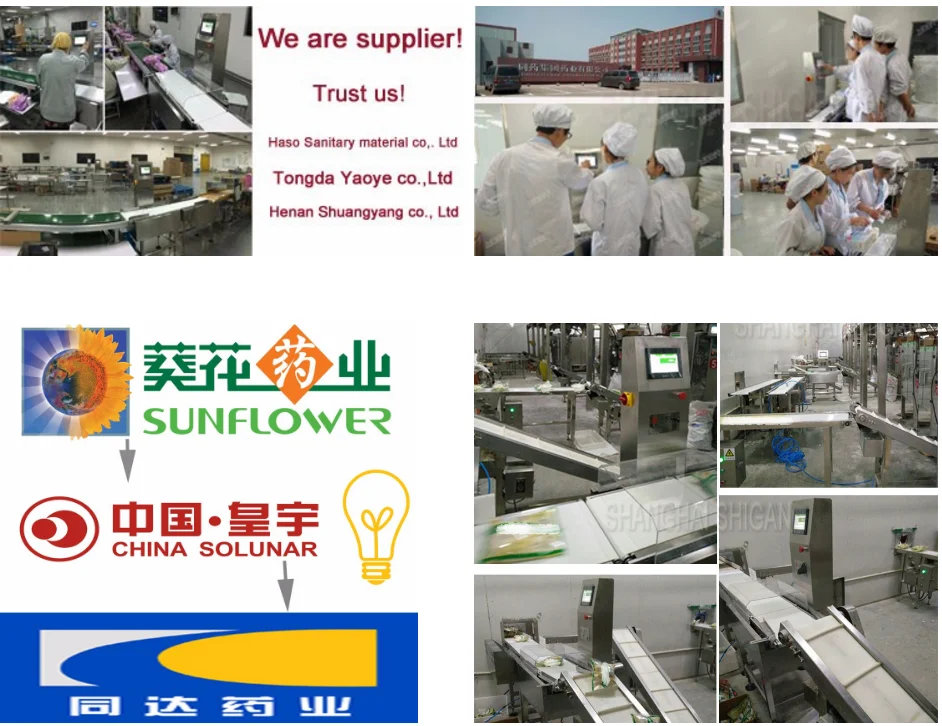

Our Customer:

Our Exhibition
FAQ

1.Are you manufacturer or trader?

We are manufacturer and we are located in Shanghai,China.And we have our own design team for products design.

2.What’s your main product and what is your main foreign market?

Our main products are Check ,Linear and Multihead Weigher, Packing Machine ,Metal Detector ,Floor and Truck scales . Our main foreign market are Asia, North America, Europe, Africa.

3.what are the advantages of your machines?And how can i believe the quality of your product?

Highest precision (a margin of error) of our products can achieve±0.05g and the highest speed can achieve 300pcs/min.Our electronic parts of equipment all adopt international famous brand.
For example,the switch is Germanic Schneider, Conveyor Belt is Swiss HABASIT,The relay is Japanese OMRON .Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4.What are your company requests of payment terms?

TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.

5.What kind of Transportation could you provide?
And are you able to update the production process Information in time after placing our order?


Sea shipping, air Shipping, and international express.
And after confirming your order ,we would keep you updated of production details of emails and photos.

6.Are you provide product metal parts and provide us technical guidance?

Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

7.How long is your warranty?

12 months free warranty, life-long maintenance.

8.Do you accept customer Logo and customized ?

we accept kinds of customized and logo of all of our products for customers .
